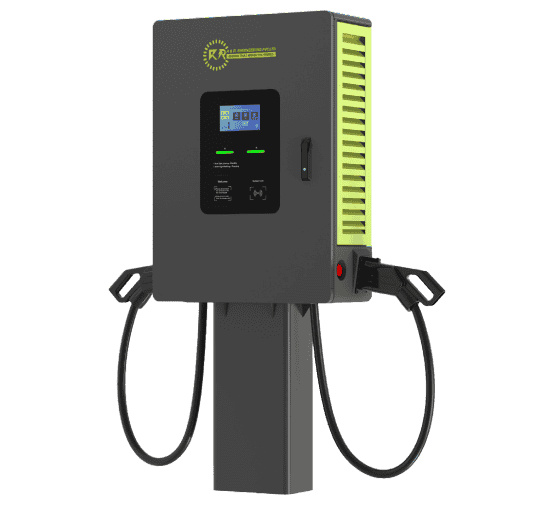

RNR EV 40kW DC Fast Charger – Commercial Fast Charging Station with Dual CCS2
The RNR EV 40kW DC Fast Charger is a high-performance commercial EV charging solution designed for public charging stations, businesses, fleet operators, petrol pumps, shopping malls, offices, and other high-demand locations.
With 40kW DC charging power, an output voltage range of 200–1000V DC, and dual CCS2 connectors, the charger provides a flexible and efficient charging solution for modern electric vehicles. Its intelligent power distribution allows charging access for two vehicles while maintaining reliable operation.
Key Features
- 40kW DC fast charging power
- Dual CCS2 charging guns
- Output voltage range of 200–1000V DC
- Maximum output current up to 133A
- Supports charging of two EVs simultaneously
- Intelligent power distribution
- OCPP 1.6J support
- RFID card authentication
- Remote monitoring and backend integration
- Three-colour LED status indicator
- IP54 weather protection
- Wall-mounted installation
- Optional floor-mounted pedestal
- CE certified
- Designed for outdoor commercial applications
Technical Specifications
Electrical Specifications
| Specification | Details |
|---|---|
| Rated Power | 40kW DC |
| Power Supply | 3/N/PE |
| Rated Input Voltage | 230/400V AC |
| Frequency | 50Hz |
| Rated Input Current | Approx. 62A |
| Output Voltage Range | 200–1000V DC |
| Maximum Output Current | Up to 133A |
| Standby Power Consumption | <30W |
| Charging Connectors | 2 × CCS2 |
| Charging Mode | DC Fast Charging |
Smart Features & Connectivity
| Feature | Details |
|---|---|
| Start Mode | RFID Card / OCPP 1.6J |
| Communication Protocol | OCPP 1.6 JSON |
| Status Indicator | Three-colour LED |
| Remote Monitoring | Supported |
| Backend Integration | Supported |
| Connector Configuration | CCS2 + CCS2 |
Advanced Safety Protection
The RNR EV 40kW DC Fast Charger incorporates multiple protection systems for safe and reliable operation:
- Over-voltage protection
- Under-voltage protection
- Surge protection
- Overload protection
- Short-circuit protection
- Earth leakage protection
- Over-temperature protection
Protection Degree: IP54
Certification: CE
Installation & Design
The charger is designed for both indoor and outdoor commercial installations.
| Specification | Details |
|---|---|
| Installation | Wall-mounted |
| Optional Installation | Floor-mounted pedestal |
| Material | Galvanized steel sheet with powder coating |
| Colour | Gray |
| Dimensions (H × W × D) | 760 × 690 × 300 mm |
| Operating Temperature | -25°C to 50°C |
| Working Humidity | 5%–95% RH, non-condensing |
| Working Altitude | <2000m |
| Protection Rating | IP54 |
Its durable construction and wide operating temperature range make it suitable for demanding commercial environments.
Ideal Applications
The RNR EV 40kW DC Fast Charger is suitable for:
- Petrol Pumps
- Shopping Malls
- Commercial Plazas
- Corporate Offices
- Highways & Service Areas
- Fleet Depots
- Car Dealerships
- Hotels & Commercial Buildings
- Public EV Charging Stations
- Commercial Parking Areas
Why Choose RNR EV 40kW DC Charger?
The RNR EV 40kW charger combines high-power DC charging, dual CCS2 connectivity, smart communication, advanced protection and durable outdoor construction in one commercial charging solution.
Ramzan and Sons Enterprises provides EV charging and energy solutions for commercial and industrial requirements, including supply, installation support and technical assistance.
